 Post subject: Deck Joint Failure
PostPosted: Wed May 01, 2019 8:09 am
Offline

Joined: Mon Jan 20, 2014 12:52 pm
Posts: 17

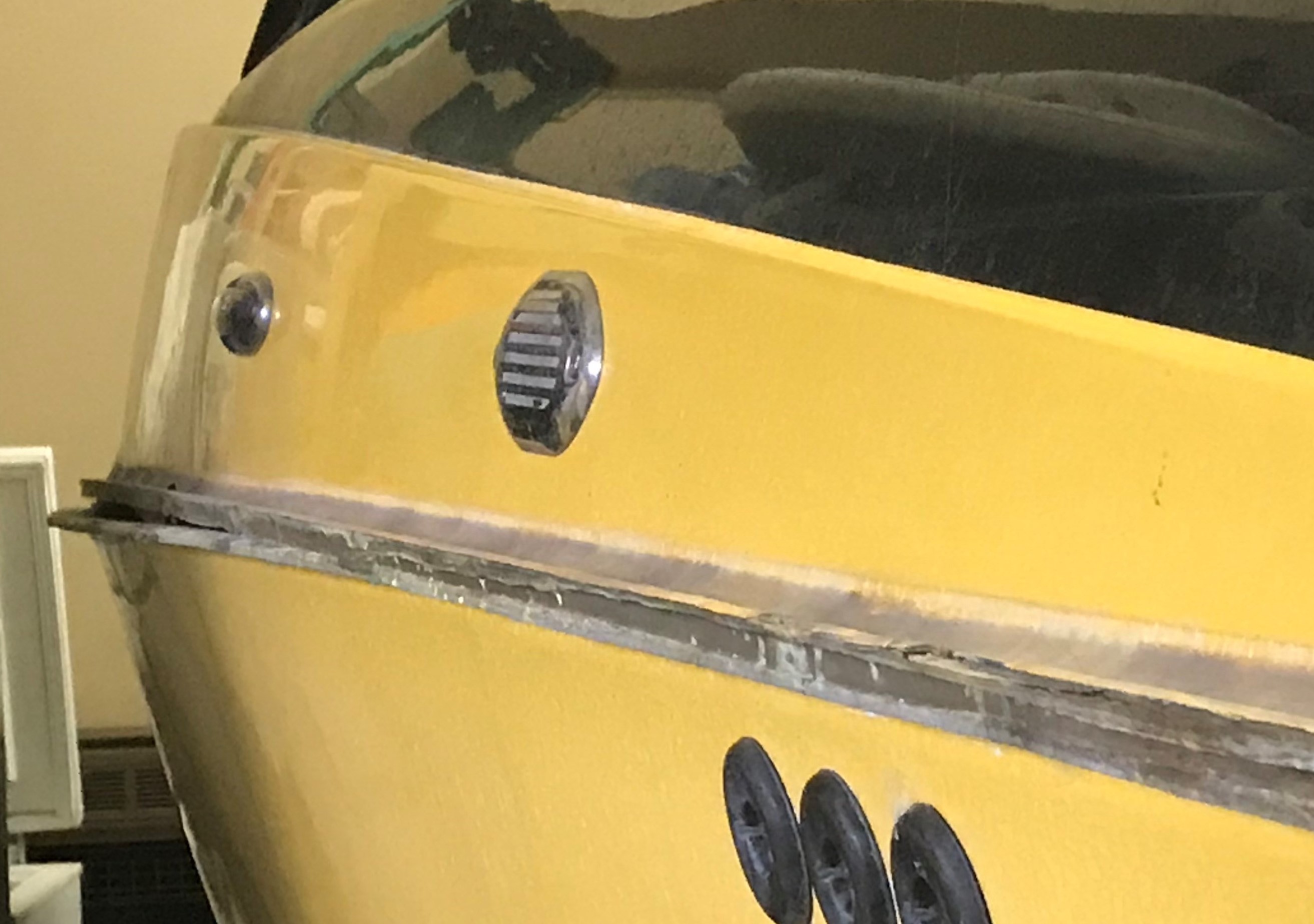

I have a 2010 A22 anybody had issues with their deck joint? Since I'm not the original owner Axis won't touch it, they say the hull warranty isn't transferable.


Attachments:
Pic1c.jpg [ 435.4 KiB | Viewed 22758 times ]

_________________
2010 A22
Top
 Profile

 Post subject: Re: Deck Joint Failure
PostPosted: Wed May 01, 2019 8:30 am
Offline

Joined: Mon Jan 20, 2014 12:52 pm
Posts: 17

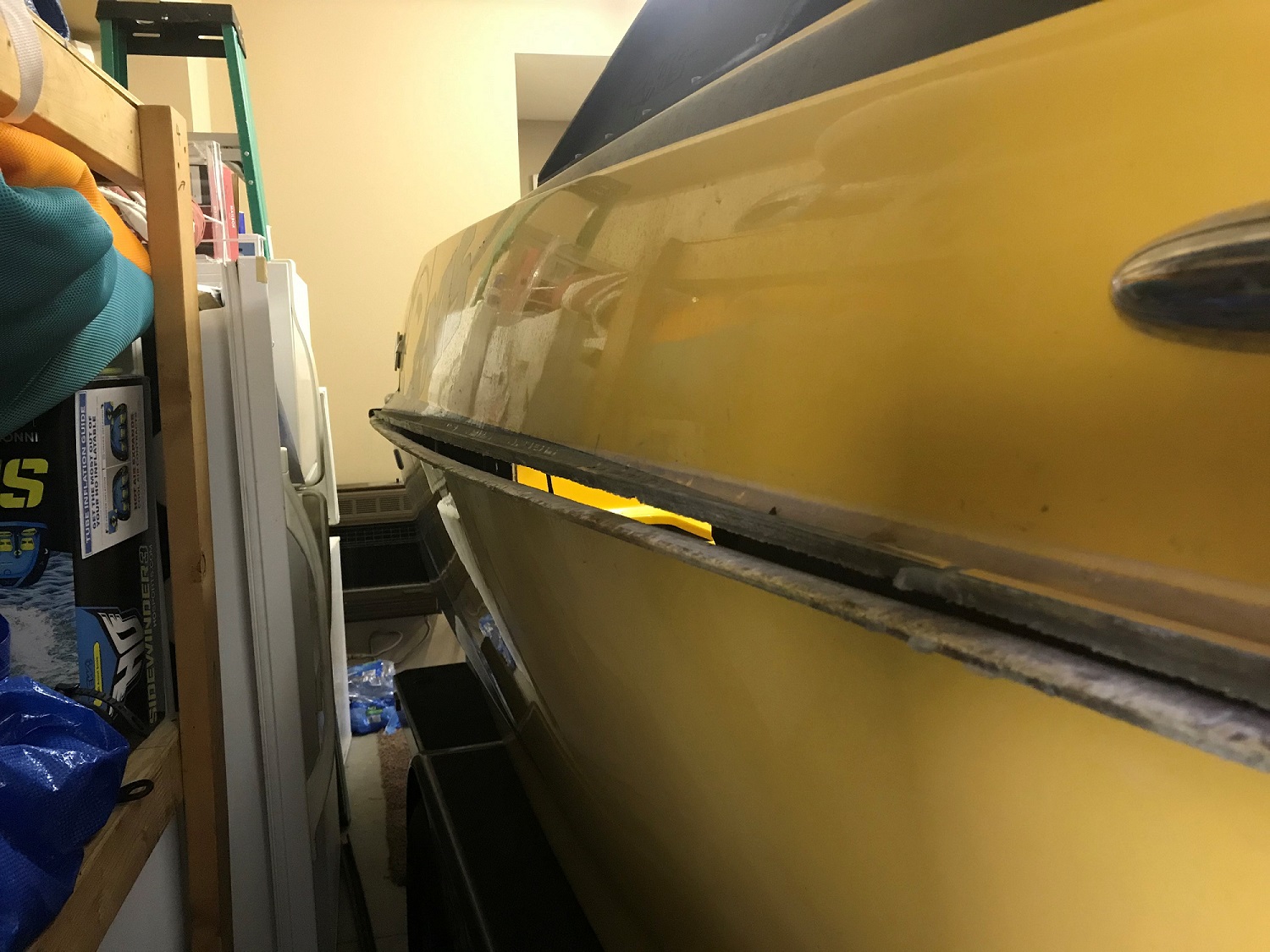

Sorry about that first picture


Attachments:
Pic4c.jpg [ 429.87 KiB | Viewed 22750 times ]

_________________
2010 A22
Top
 Profile

 Post subject: Re: Deck Joint Failure
PostPosted: Wed May 01, 2019 9:49 am
Offline
Boater
User avatar

Joined: Thu Aug 13, 2015 3:39 pm
Posts: 34
Yep, I sure did on my 2011 A20. I had the same scenario, purchased used with no transferable warranty. I called up my local Malibu dealer and explained the situation and that the next year they changed the warranty to become transferable for the hull. They spoke with the malibu rep and agreed to supply the parts the to fix the issue, but not the labor. The good news is that it's much stronger than factory now.


Top
 Profile

 Post subject: Re: Deck Joint Failure
PostPosted: Wed May 01, 2019 12:24 pm
Offline

Joined: Mon Jan 20, 2014 12:52 pm
Posts: 17
Thanks for the reply! I figured I can't be the only one. What parts did they supply? Did you do the work yourself? Did you redo the joint all the way around the boat or just the side that failed?

My plan as of now is to clamp it together and drill trough holes every 6 inches or so in the joint. Then tap the bottom or hull side of the seam, drill out the top slightly larger and countersink, then cut stainless machine screws so they go in flush. To complete I will run a good bead of Plexus MA310 on the seam, then screw it together as I go.

Anybody have thoughts or think I'm insane?

My father in law is a competitive sailor and he says he taps fiberglass all the time and thinks this is the way to go.

_________________
2010 A22


Top
 Profile

 Post subject: Re: Deck Joint Failure
PostPosted: Thu May 02, 2019 10:11 am
Offline
Team Axis

Joined: Mon Jul 28, 2014 10:25 am
Posts: 208
Put the plexus between the 2 parts before you clamp them together.

Rough them up with 80 grit really good on the surfaces and clean with acetone before application.


Top
 Profile

 Post subject: Re: Deck Joint Failure
PostPosted: Mon May 06, 2019 2:41 pm
Offline
Team Axis

Joined: Thu Mar 15, 2012 12:21 pm
Posts: 144
Just curious, what made you take the run rail off and inspect it? Was it noticeable with everything installed?

I have a 12’ and recently pulled my run rails off, but didn’t think to inspect the seams.


Top
 Profile

 Post subject: Re: Deck Joint Failure
PostPosted: Wed May 08, 2019 4:59 am
Offline
Team Axis

Joined: Thu Dec 05, 2013 2:22 pm
Posts: 437
I don’t think your crazy but as previous person said, glue the seam before clamping.


Top
