Post subject: 2012 A22 home made wiring diagram!  Posted: Wed Jul 22, 2020 4:20 pm |
|
Joined: Tue Jun 30, 2020 12:45 pm
Posts: 3
|
|

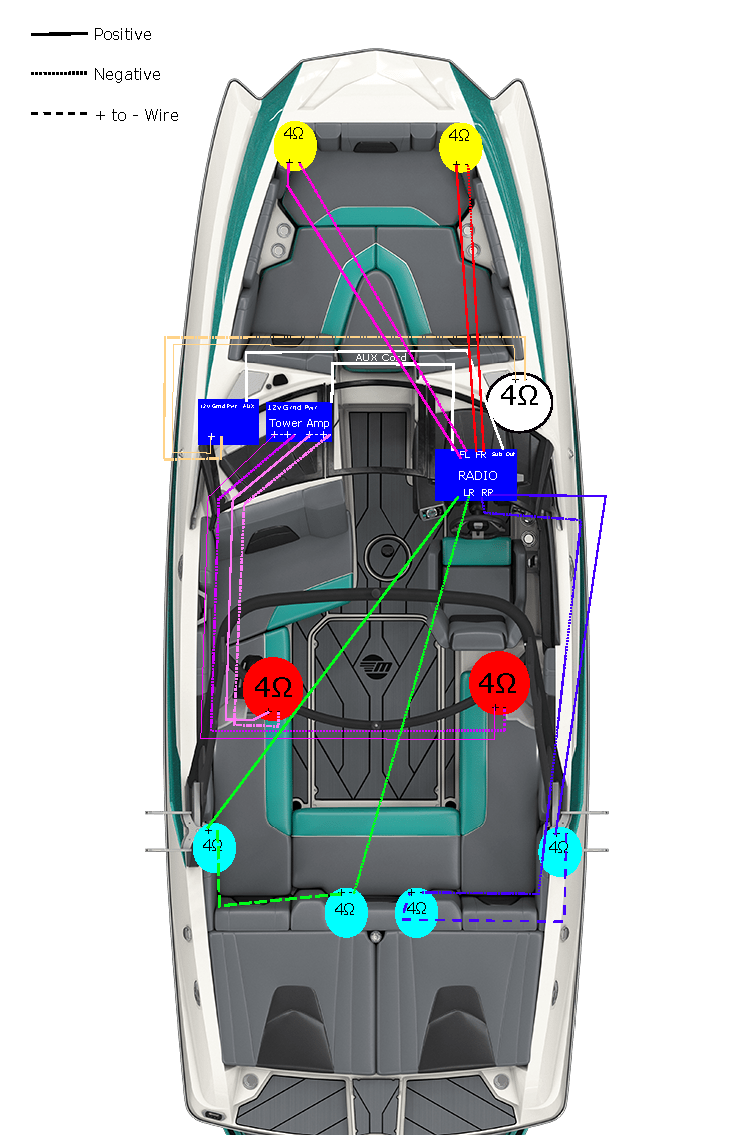

We are redoing the aftermarket stereo system on our 2012 a22. I developed this basic (honestly even a little crude) wiring diagram for our installation. Any thoughts? Thought this may even help anyone else looking at working on their a22. PDF file is attached below.
| Attachments: |
Axis_Speaker_Wiring_Diagram_All_Speakers.png [ 469.77 KiB | Viewed 35235 times ]
|
|
|
| Top |
|
 |
|
morrisdl
|
Post subject: Re: 2012 A22 home made wiring diagram! Posted: Wed Jun 02, 2021 6:54 am |
|
 |
| Team Axis |
Joined: Wed Apr 27, 2011 1:58 pm
Posts: 659
Location: Smith Mt Lake, VA
|
|

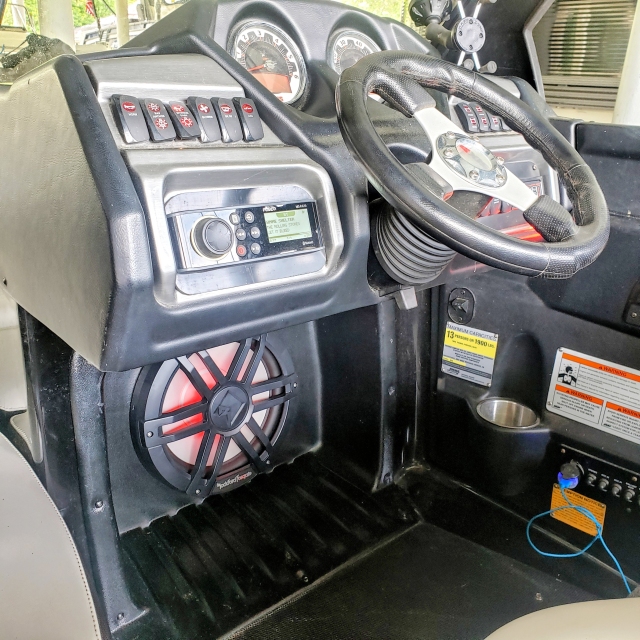

Nice diagram. You only have two tower speakers? My 2010 A22 has similar speaker layouts, but 4 tower speakers (2 channel @ 2ohm) and all the speaker wires run to the passenger side closet. Two 4 channel MTX amps in there and the original 12" sub. I have since moved my factory sub from the closet (dumbest design) to the drivers footwell.
| Attachments: |
20210531_105241_2 (1).jpg [ 301.65 KiB | Viewed 29316 times ]
|
|
|
