Robert95z
|
Post subject: Re: Depth Finder Install  Posted: Tue Aug 04, 2015 12:36 am |
|
 |
| Team Axis |
Joined: Tue Sep 02, 2014 1:55 pm
Posts: 148
|
|

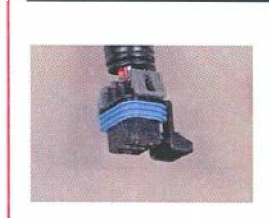

Here is a picture of the connector. Should be on the starboard side inbetween the engine and the transmission.
| Attachments: |
unnamed.png [ 49.7 KiB | Viewed 42530 times ]
|
|
|
| Top |
|
 |
|
r33pwrd
|
Post subject: Re: Depth Finder Install Posted: Tue Aug 04, 2015 7:03 am |
|
|
| Team Axis |
Joined: Sat Jun 06, 2015 10:35 pm
Posts: 1181
Location: Sammamish WA
|
|
Thanks... so was your above the transmission or down on the side more? Mine must be covered by something? Or I'm just blind..
_________________
-2015 A24 - 409 HP - 2249 Prop - 1100 rear sacs - 950 front sac - 290lb rider with Red Rocket and Phase 5 Quest
|
|
| Top |
|
|
|
r33pwrd
|
Post subject: Re: Depth Finder Install Posted: Tue Aug 04, 2015 3:06 pm |
|
|
| Team Axis |
Joined: Sat Jun 06, 2015 10:35 pm
Posts: 1181
Location: Sammamish WA
|
|
Note to A24 owners (possibly others) the transducer is designed to go next to the front ballast pumps not in the rear by the transmission (per Axis tech support). The plug is right under the large plastic access panel under the carpet. I had to run the wires over the gas tank as I installed the transducer before finding plug (Im a dumb ass but it will still work fine)
_________________
-2015 A24 - 409 HP - 2249 Prop - 1100 rear sacs - 950 front sac - 290lb rider with Red Rocket and Phase 5 Quest
|
|
| Top |
|
|
|
baz787
|
Post subject: Re: Depth Finder Install Posted: Mon Sep 21, 2020 5:36 pm |
|
Joined: Sun Apr 22, 2018 8:42 pm
Posts: 13
Location: Annecy, France
|
|

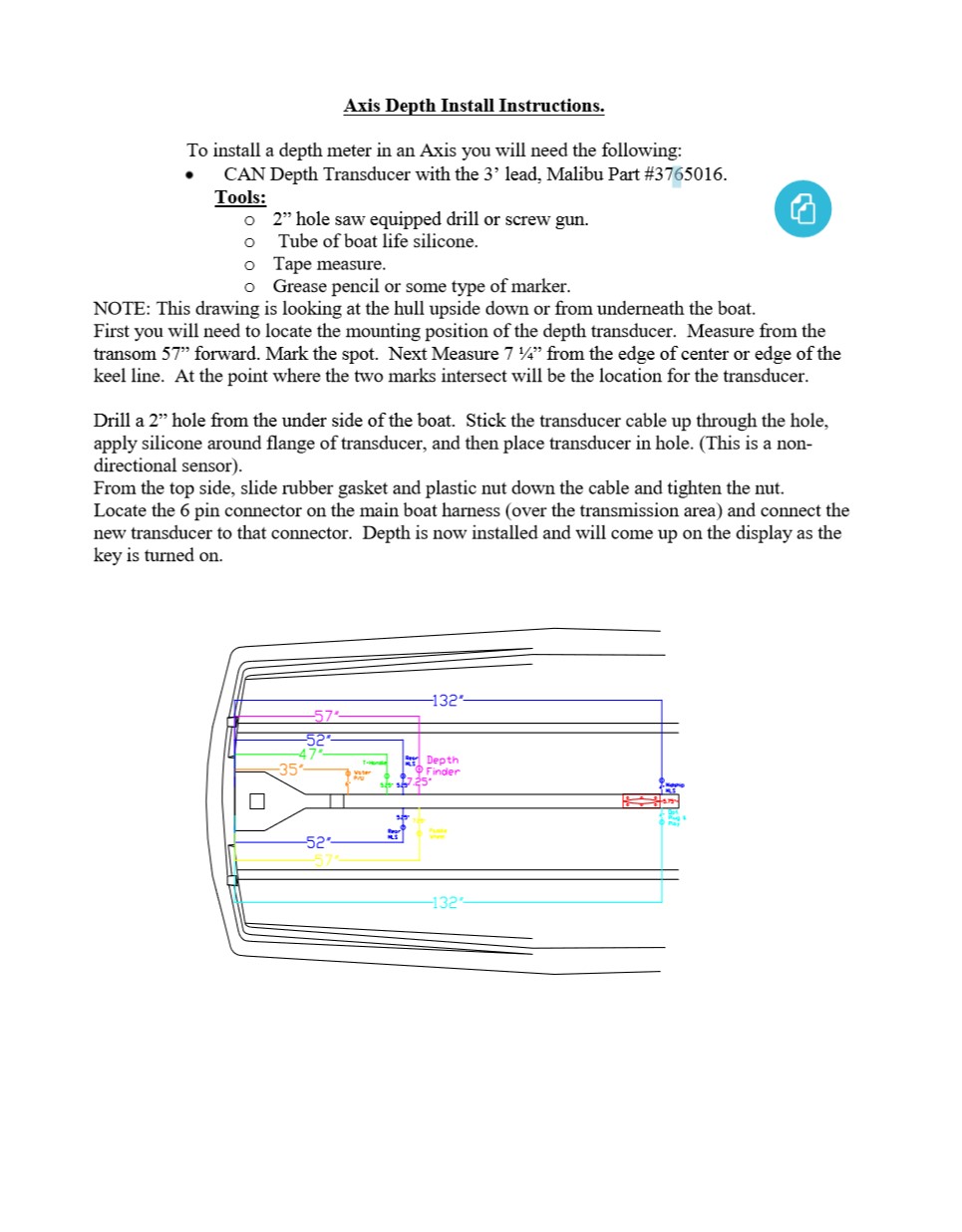

Got install instructions from Axis in case anyone finds them useful
| Attachments: |
Axis Depth Install Instructions.jpg [ 156.09 KiB | Viewed 36397 times ]
|
_________________
---------------------------------------
2011 Axis A20 with GoSurfAssist
Indmar AR335 5.7L
|
|
| Top |
|
|
