bcmitchells
|
Post subject: Center set of pumps not working Posted: Fri Jun 28, 2024 10:53 pm |
|
Joined: Thu Jun 27, 2024 10:55 am Posts: 2
|
Hi.
I'm new to the forum, and I have a strange issue I'm hoping someone here can help with. Recently picked up a used 2016 T23. During the test drive everything was working fine, but now I have a strange problem. The bow fill and drain pumps, the center fill and drain pumps and the bilge pump will not run. Here are the symptoms and what I've tried:
1. Lights on the switches all come on as you would expect 2. Breakers are fine (I have tested them with a meter) 3. Pump cartridges appear to be fine - For this I pulled out one of the rear ballast pumps and swapped it with the bow drain to confirm it wasn't a dead set of pumps. 4. There is no fusebox to check
It's as if there is a power problem to all the pumps below the center hatch, but I've hit the wall in my ability to diagnose and it's a long drive back to the dealer.
I'm really hoping someone here has seen something like this before and can point me at where else to look. Any help appreciated!
Attachments: |

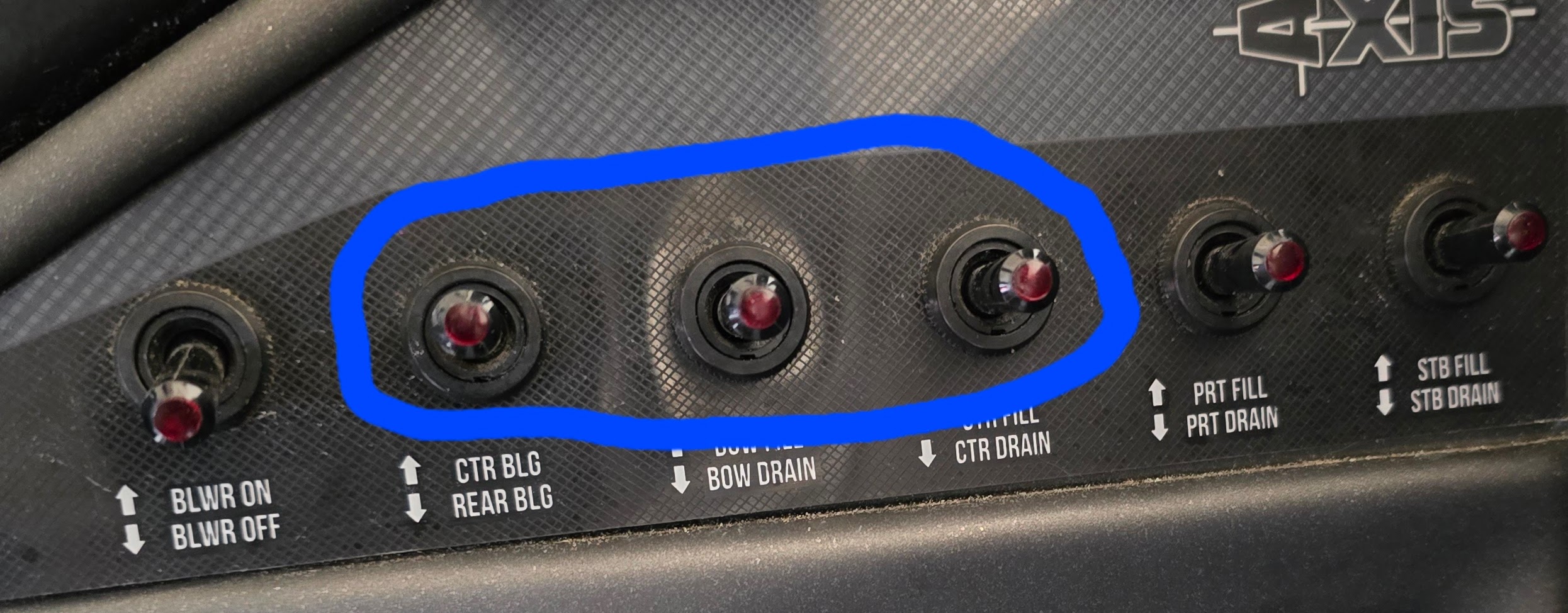

File comment: These are the switches that light up but the pumps don't run.
switches3.jpg [ 496.92 KiB | Viewed 26715 times ]
|
|
|
Top |
|
|
bcmitchells
|
Post subject: Re: Center set of pumps not working Posted: Sat Jul 06, 2024 12:26 pm |
|
Joined: Thu Jun 27, 2024 10:55 am Posts: 2
|
Just in case anyone else ever comes across this issue - it turned out to be a loose connector behind the dash.
|
|
Top |
|
|
admin
|
Post subject: Re: Center set of pumps not working Posted: Sun Jul 07, 2024 8:13 pm |
|
|
Site Admin |
|
Joined: Wed Apr 21, 2010 9:00 am Posts: 1115
|
That was what I was going to suggest.. Ive had issues with the connections to the back of the panel in the past.
|
|
Top |
|
|
WayneTuttle
|
Post subject: Re: Center set of pumps not working Posted: Thu Jul 18, 2024 4:33 pm |
|
|
Team Axis |
Joined: Sat Jun 21, 2014 6:27 pm Posts: 174 Location: Parker Strip, AZ
|
Last year my CENTER tank stopped draining. The fill pump is fine, but it will not drain. I pulled the floor out and tried to get my big fat arms into the gap to remove the pump, and realized it would not work. So for quite a while I have a boat that is rather heavy on its trailer.
This has given me hope as I have never looked at the connectors behind the dash. I sure hope that resolves it!
|
|
Top |
|
|
WayneTuttle
|
Post subject: Re: Center set of pumps not working Posted: Thu Jul 18, 2024 4:34 pm |
|
|
Team Axis |
Joined: Sat Jun 21, 2014 6:27 pm Posts: 174 Location: Parker Strip, AZ
|
Last year my CENTER tank stopped draining. The fill pump is fine, but it will not drain. I pulled the floor out and tried to get my big fat arms into the gap to remove the pump, and realized it would not work. So for quite a while I have a boat that is rather heavy on its trailer.
This has given me hope as I have never looked at the connectors behind the dash. I sure hope that resolves it!
|
|
